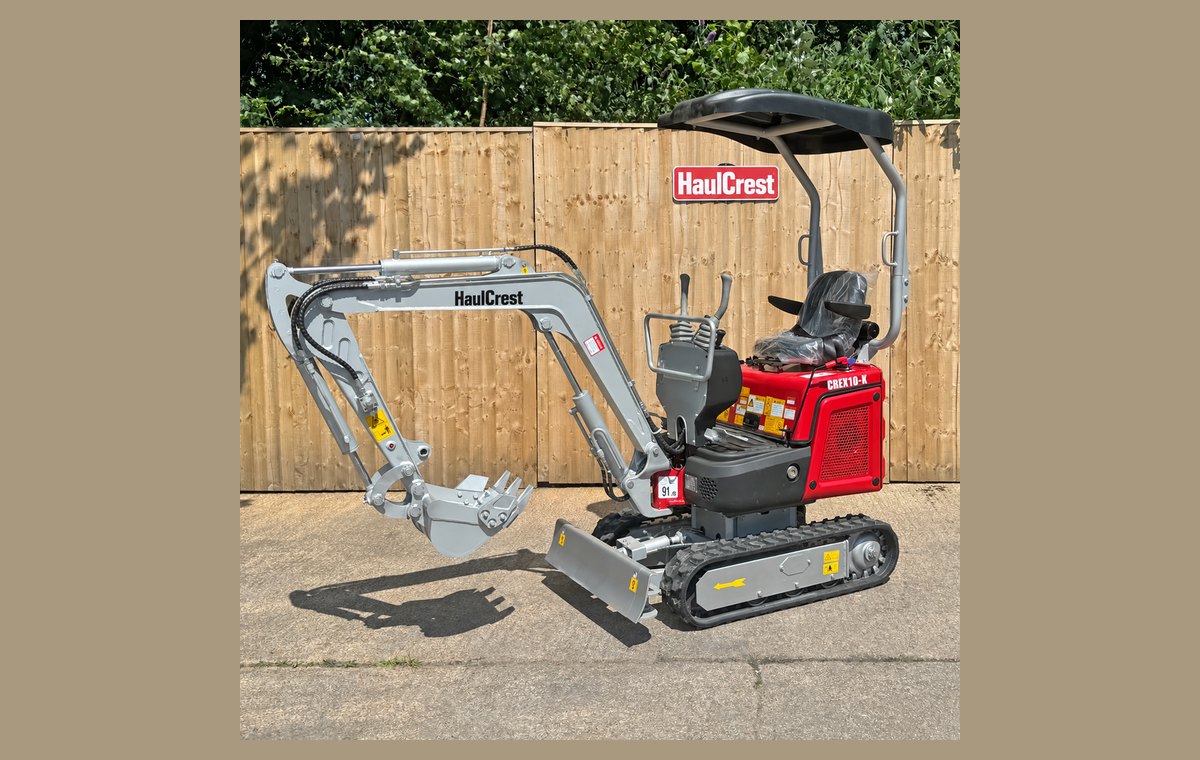

A 900 kg backhoe mini excavator on rubber tracks, with a dozer blade, boom swing and a telescopic undercarriage that closes to 800 mm to get down the side of a house and opens to 950 mm for stability once it is in.
Price includes UK VAT at 20% (£575) and free delivery to the UK mainland.
Item code HC-CREX10K · new, unregistered, UK stock
Added to your basket. View basket
Buy now takes you straight to checkout with this machine in your basket.
Built for the job
Closed it is 800 mm across, which clears a standard side gate. Once through, it opens to 950 mm so it is stable enough to dig against rather than tipping toward the trench.
Light enough for a braked car trailer, so you are not hiring a plant lorry or waiting for a transport slot to start a job.

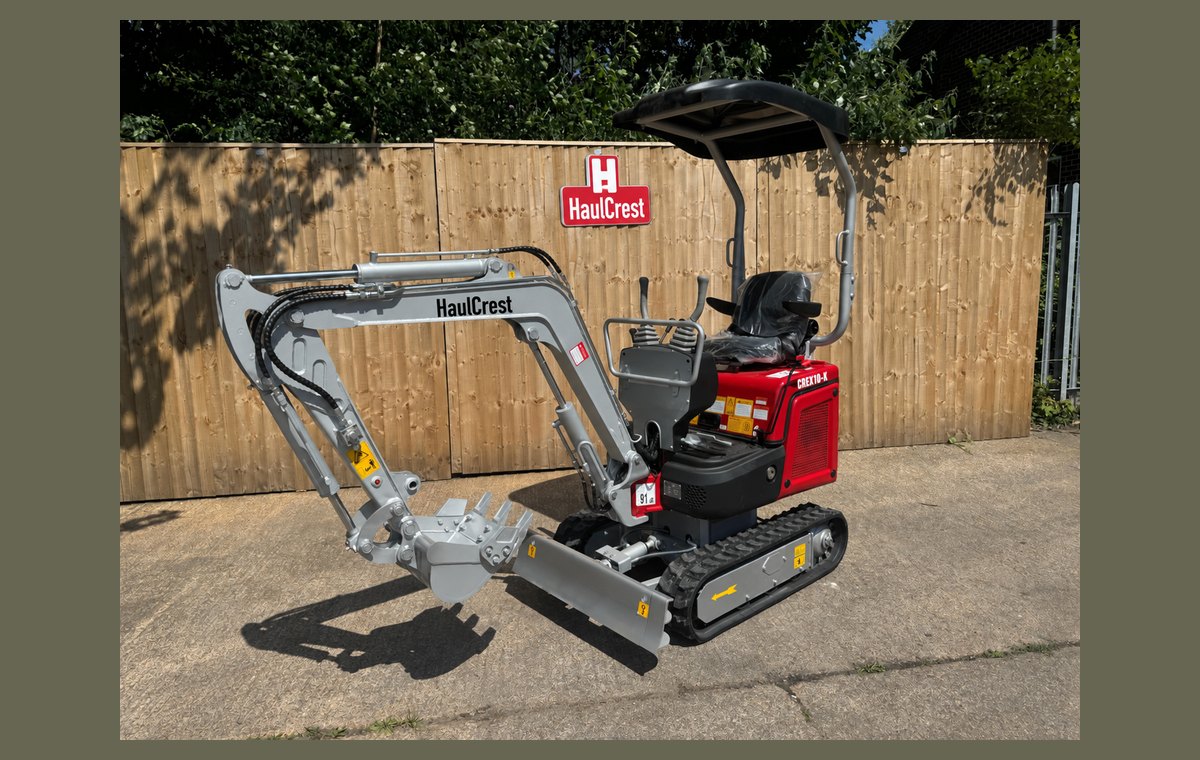

50° left and 55° right lets you dig parallel to a wall or a fence without repositioning the tracks every metre.

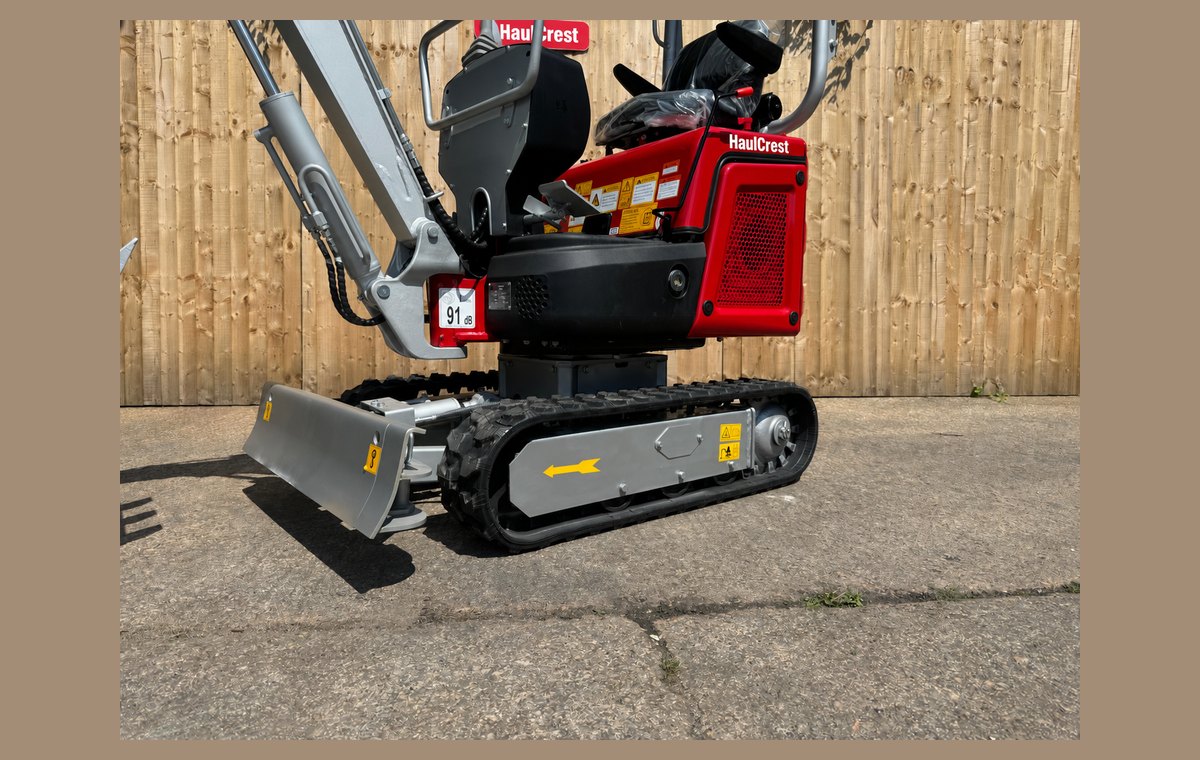

Backfill and level with the same machine that dug the trench. It also stabilises the front while you are working.

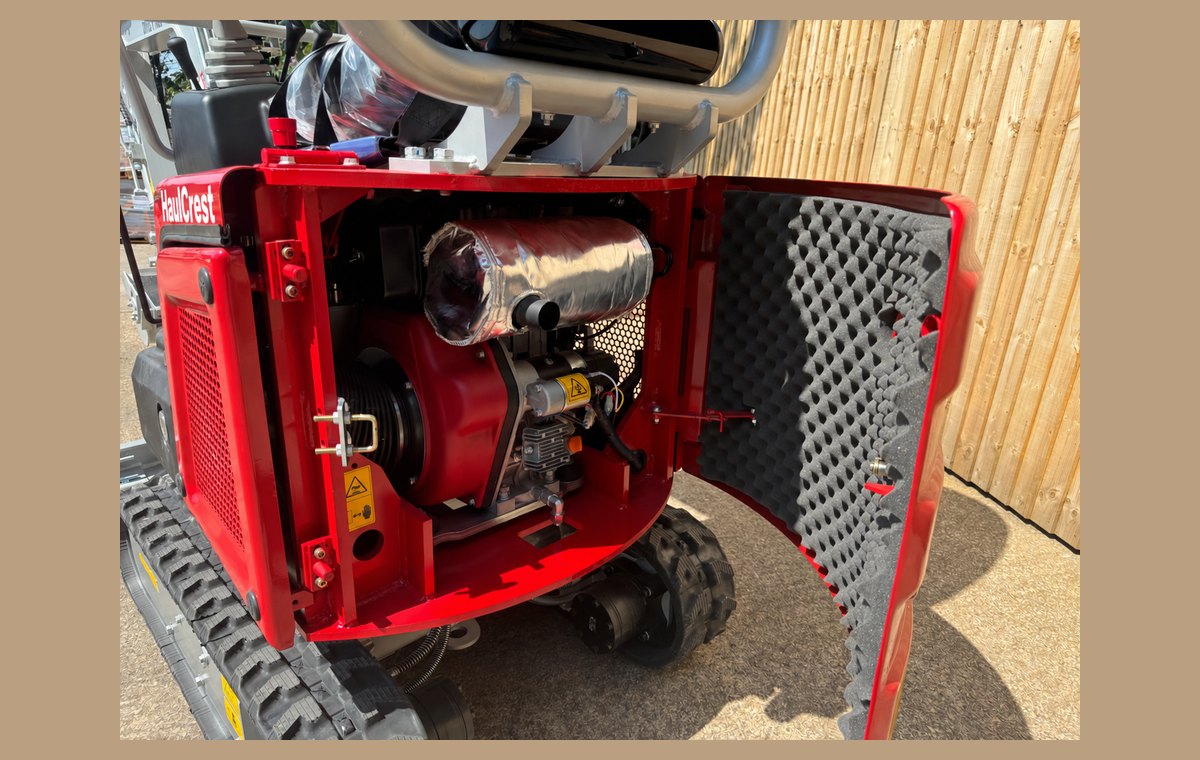

A KOOP 192 diesel at 7 kW, with 16 MPa hydraulics and 19 L/min of flow — enough to run a breaker or an auger properly.
Breaker, auger, log grabber, rake, ripper and buckets from 200 mm to 800 mm all change over on the quick hitch.

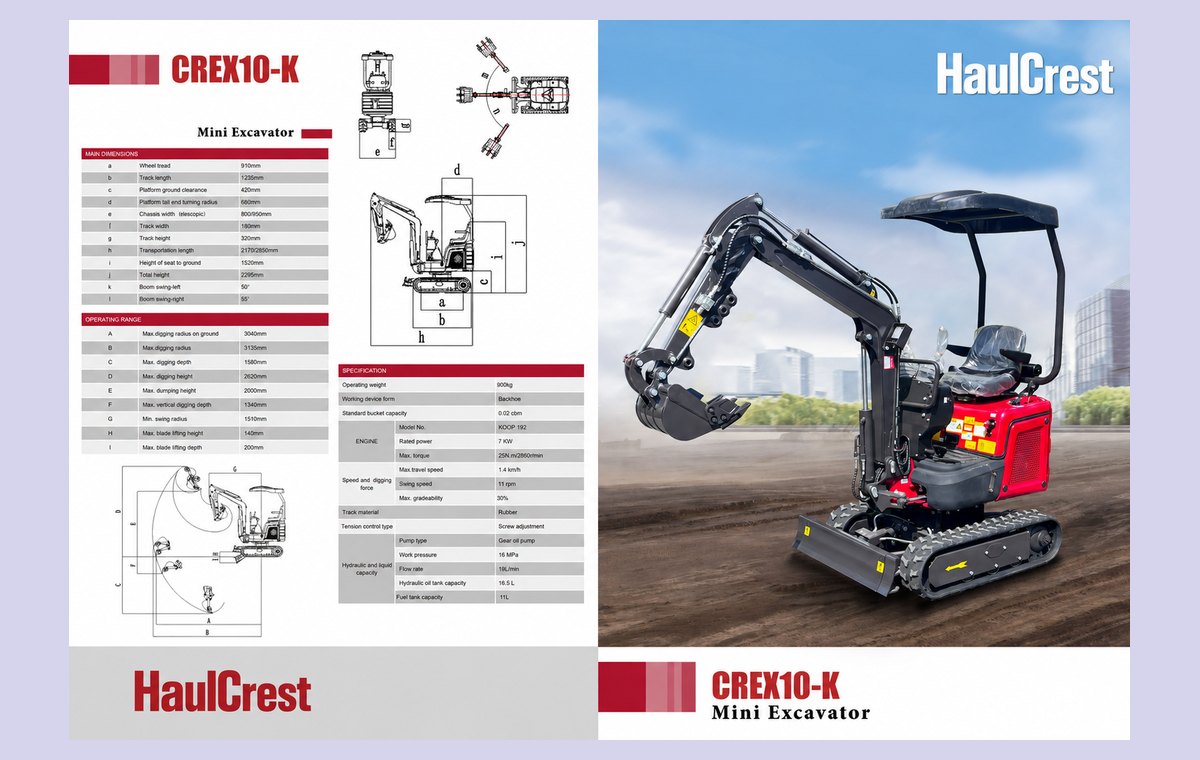

Full specification
| Model | HaulCrest CREX10-K |
|---|---|
| Operating weight | 900 kg |
| Working device form | Backhoe |
| Standard bucket capacity | 0.02 m³ |
| Engine model | KOOP 192 diesel |
| Rated power | 7 kW |
| Maximum torque | 25 N·m at 2860 rpm |
| Maximum travel speed | 1.4 km/h |
| Swing speed | 11 rpm |
| Maximum gradeability | 30% |
| Max. digging depth | 1580 mm |
| Max. vertical digging depth | 1340 mm |
| Max. digging radius on ground | 3040 mm |
| Max. digging radius | 3135 mm |
| Max. digging height | 2620 mm |
| Max. dumping height | 2000 mm |
| Min. swing radius | 1510 mm |
| Boom swing | 50° left, 55° right |
| Chassis width (telescopic) | 800 / 950 mm |
| Track width | 180 mm |
| Track length | 1235 mm |
| Wheel tread | 910 mm |
| Track material | Rubber |
| Track tension | Screw adjustment |
| Platform tail turning radius | 680 mm |
| Transportation length | 2170 / 2850 mm |
| Max. blade lifting height | 140 mm |
| Max. blade lifting depth | 200 mm |
| Hydraulic pump | Gear oil pump |
| Working pressure | 16 MPa |
| Flow rate | 19 L/min |
| Hydraulic oil tank | 16.5 L |
| Fuel tank | 11 L |
| Warranty | 2 years parts, 1 year engine |
Specifications are nominal and may vary slightly by production batch. Shipping weight kg, crated .

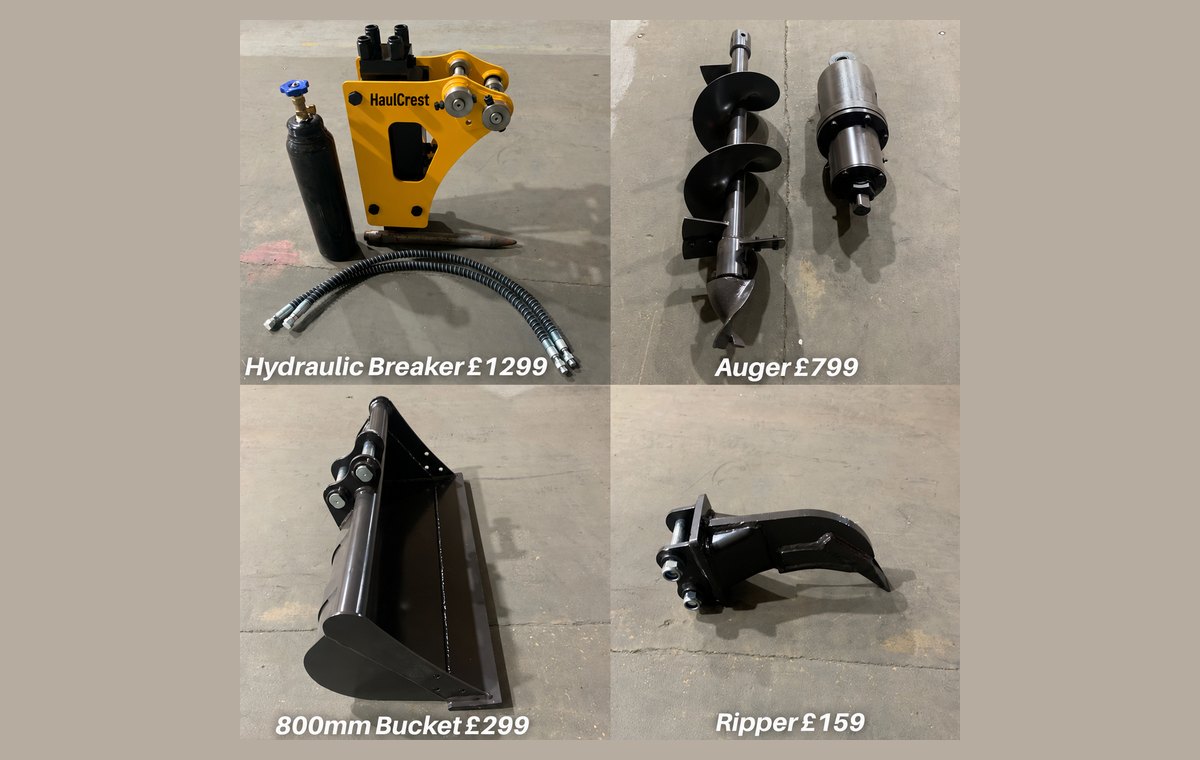

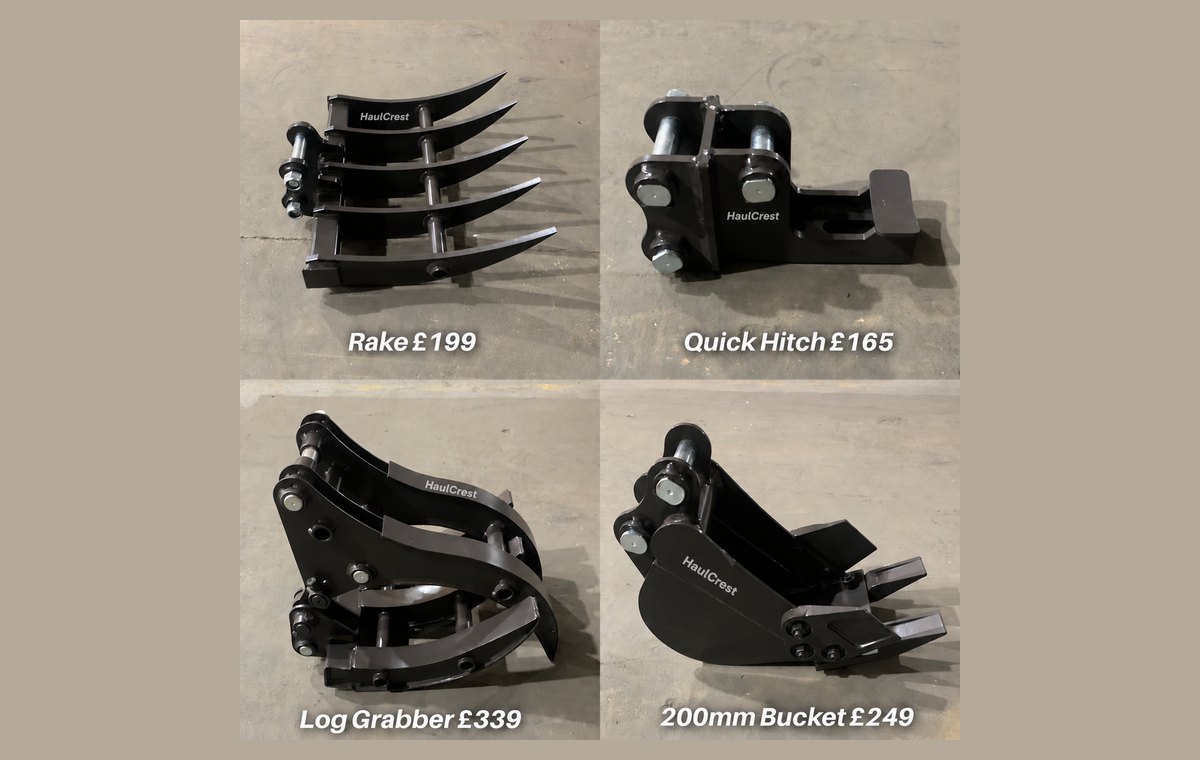

Attachments
Prices include VAT. All change over on the quick hitch. Tell us which you want and we will add them to your order — they ship in the same crate.
| 200 mm bucket | £249 |
|---|---|
| 800 mm bucket | £299 |

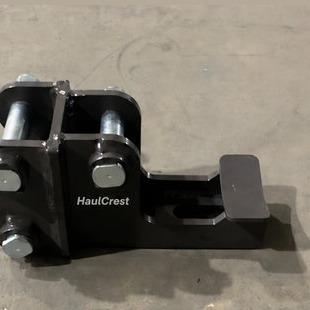

| Quick hitch | £165 |
| Ripper | £159 |
| Rake | £199 |
| Log grabber | £339 |
| Auger | £799 |
| Hydraulic breaker | £1,299 |
Questions
The chassis is telescopic: 800 mm closed and 950 mm open. A standard UK side gate opening is 780–900 mm, so it fits the great majority with the tracks retracted. Measure the narrowest point on the route, which is usually a gate post rather than the gate.
1580 mm maximum digging depth, 1340 mm vertical, with a reach of 3040 mm at ground level. That covers drainage, footings for a garden room, ponds and service trenches.
900 kg operating weight, so a braked car trailer plated for a tonne or more will carry it. Check your trailer plate and your licence entitlement before loading.
The machine ships with its standard bucket. The breaker, auger, grabber, rake, ripper, quick hitch and the wider buckets are separate — current prices are listed on this page. Ask us to add any of them to your order.
No legal licence to own or use one on private land. For paid work on a commercial site most principal contractors want a CPCS or NPORS card for 360° excavators under 10 tonnes. That is a site-access requirement rather than a legal one, and we do not provide certification.
